            [pname] => Dakota Digital VHX-82C-CAM-S-R Compatible with 1982-89 Chevy Camaro Analog Dash Gauge System Silver Alloy Red Backlighting
            [pcustomer] => apnoakes
            [price] =>
            [quantity] => 1
            [description] =>
Check out full details and more pictures here:

>>> CLICK HERE <<<

About this item



Included Displays: Speedometer, Tachometer, Oil Pressure, Water Temp, Digital Voltmeter, Fuel Level.

Also shown in digital message center: Odometer, Trip Odometer, Resettable Service Odometer, Clock, Hour Meter, 0-60 MPH Timer...

Various Indicators can be displayed: Turn Signals, High Beam, Check Engine, Parking Brake, Cruise Control…

Necessary sensors included for oil pressure (1/8” NPT), Water Temp (1/8" with bushings for 1/4", 3/8", 1/2” NPT as well 12mm and 16mm for GM & LS applications) and speedometer pulse generator.

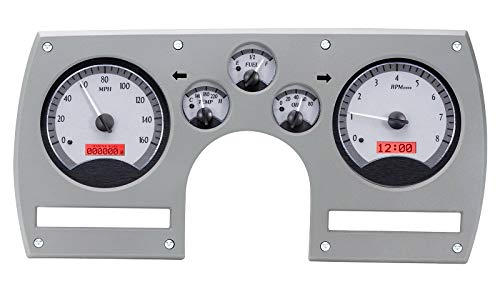

The VHX-82C-CAM-S-R (silver alloy style/red backlighting) is compatible with 1982-89 Chevy Camaro (not Firebird), a simple bolt in, boasting five analog instruments in addition to dual LCD message centers. Does not fit Berlinetta. *Uses factory bezel/ trim/ fascia (not included, shown for demonstration purposes only).


Product Description

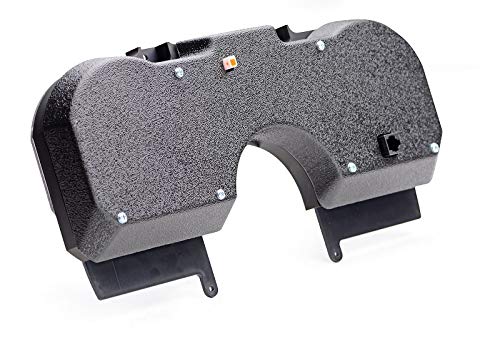

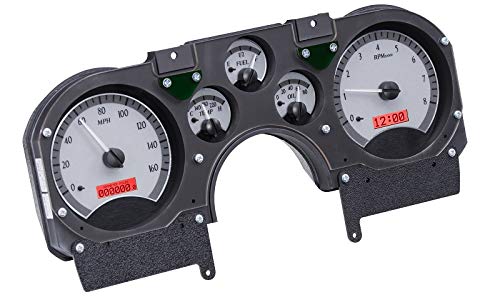

For many, the 3rd-Gen Camaro was the finest made: the 1982 - 89 Camaro is the perfect vehicle for modification and bringing its features to today’s standards. These VHX Systems fit directly into the stock Camaro gauge bezel (not included) and include new billet aluminum rear gauge carrier.

A new chapter began in 1982 for the Chevy Camaro, and Dakota Digital took notice. VHX-82C-CAM is a simple bolt in for the 1982-89 Camaro (sorry, not Firebird), boasting five analog instruments in additional to dual LCD message centers.

Does not fit Berlinetta

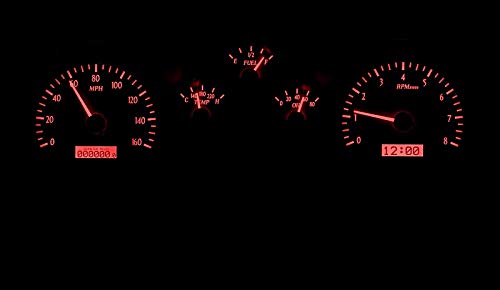

Fully lit needles, backlit faces, and three highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems. Completely engineered and manufactured at their facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!

Analog Gauges:

Speedometer - 0-160 MPH

Tachometer - 0-8000 RPM

Oil Pressure - 0-80 psi

Water Temperature - 100-260ºF

Fuel Level - E, 1/4, 1/2, 3/4, F

Voltmeter - 9-17 VDC

Digital Message Centers:

Standard Displays:

-Odometer (One time user settable, Million Mile)

-Dual (A/B) Trip Meter (0- 9,999.9)

-Clock (12 hour)

Performance Meters:

-0-60 MPH Timer (0- 100 kmh)

-1/4 mile time

-1/4 mile end speed (trap speed)

-High speed recall

-High RPM recall

Built-In Indicators:

-Turn Signals (Left/ Right)

-High Beam

-Check Engine

-Parking Brake

-Cruise Control (On/ On & Engaged when vehicle is equipped)

-Gear Position (Optional GSS-3000 sensor required, sold separately)...
