Product Description
ALLOYWORKS 3 Row of Tubes Core Racing Design, Complete Radiator will be your Best Choice!
Application:

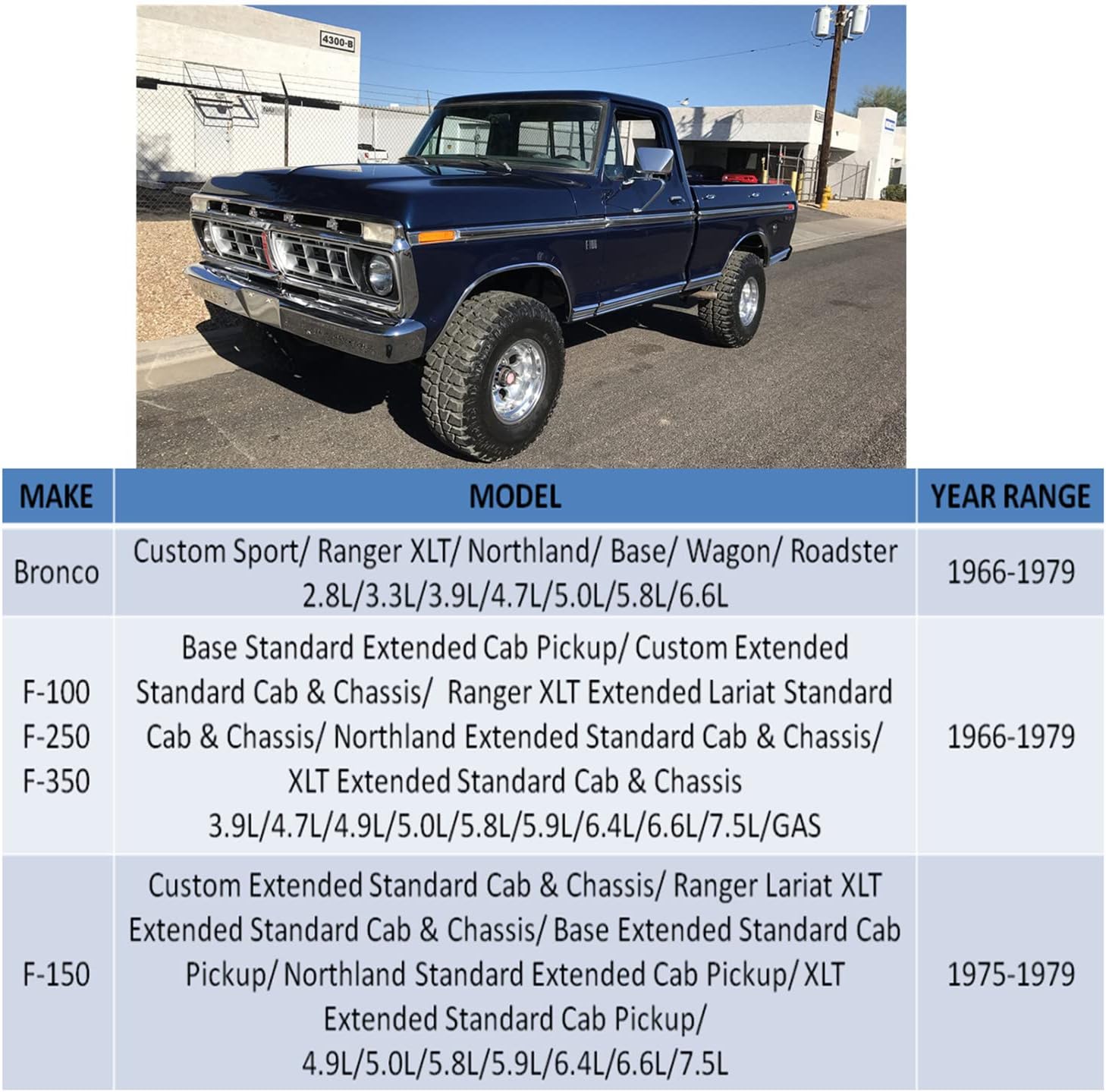

For 1966-1979 FORD F-Series/ Bronco TRUCK V8
For Ford Bronco 1978-1979 (351ci V8, 400ci V8);
For Ford F-Series Truck 1968-1969 (4.9L Straight 6-cylinder, 360ci V8, 390ci V8);
For Ford F-Series Truck 1970-1972 (360ci V8, 390ci V8);
For Ford F-Series Truck 1973-1975 (302ci V8, 360ci V8, 390ci V8);
For Ford F-Series Truck 1976 (302ci V8, 351ci V8);
For Ford F-Series Truck 1977-1979 (302ci V8, 351ci V8, 400ci V8)
OE/OEM Part Number: 433,SBR433,CC433,CU433,DPI433,DPI433,DPI132,CU132
Radiator Details:
Color: Silver

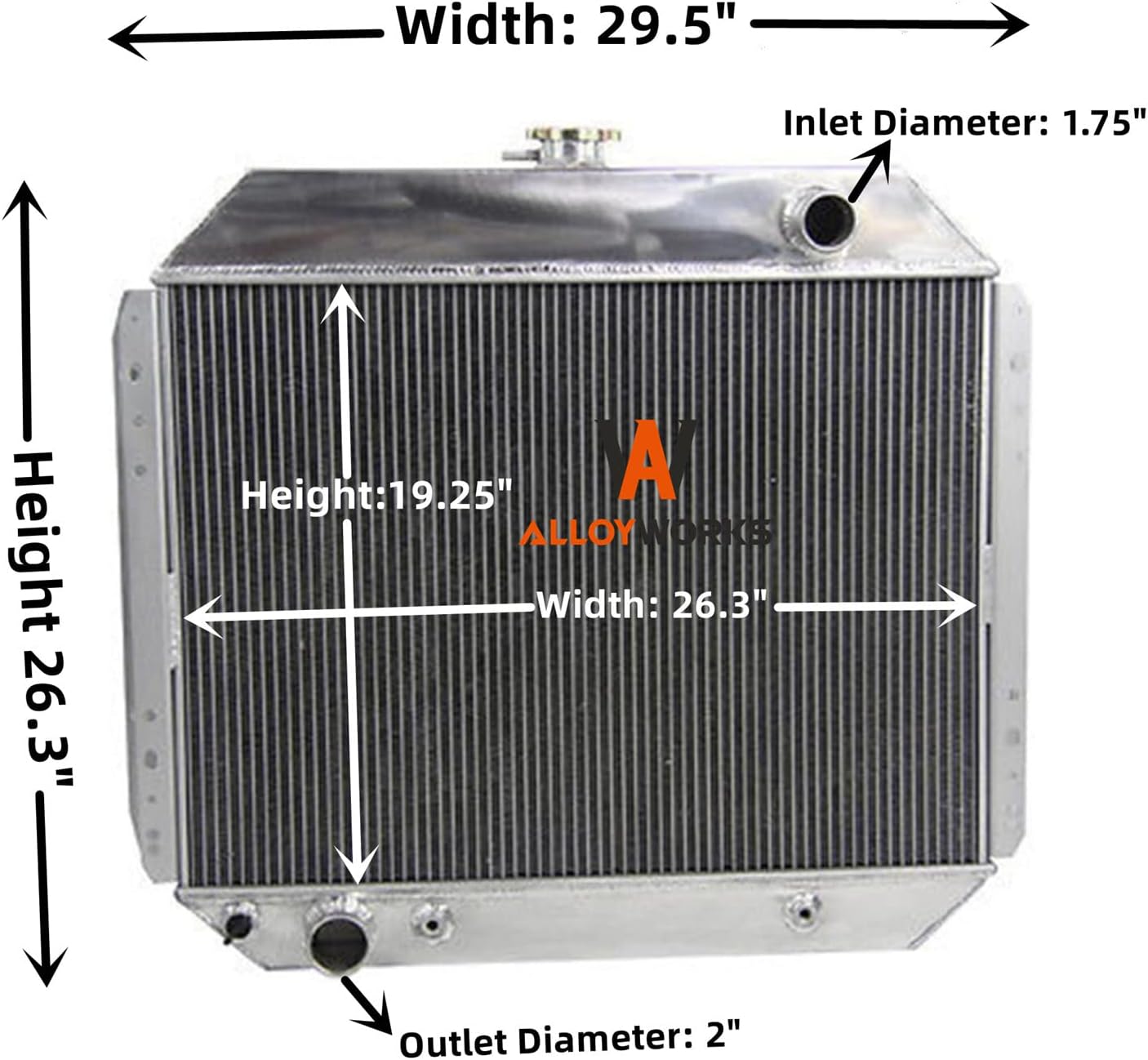

Core Size: Height:19.25" x Width: 26.3" x Thick: 2.75''
Overall: Height 26.3" x Width: 29.5"
Inlet Diameter: 1.75" x Outlet Diameter: 2"
Upper Hose Fitting: PASS
Lower Hose Fitting: DRIVER
Trans Cooler Details: φ26*305*1/8-27NPT(T)
Mounting Specs: Ver - 16 1/2 Horizontal - 27 3/8
QC passed: Yes
Mounting Type: BRACKET
Material: Full Aluminium
Core and Tank: All Aluminum
High Performance Racing Spec.
Mounting Style: Screw-On
Radiator style: Downflow
Fit type: Vehicle Specific

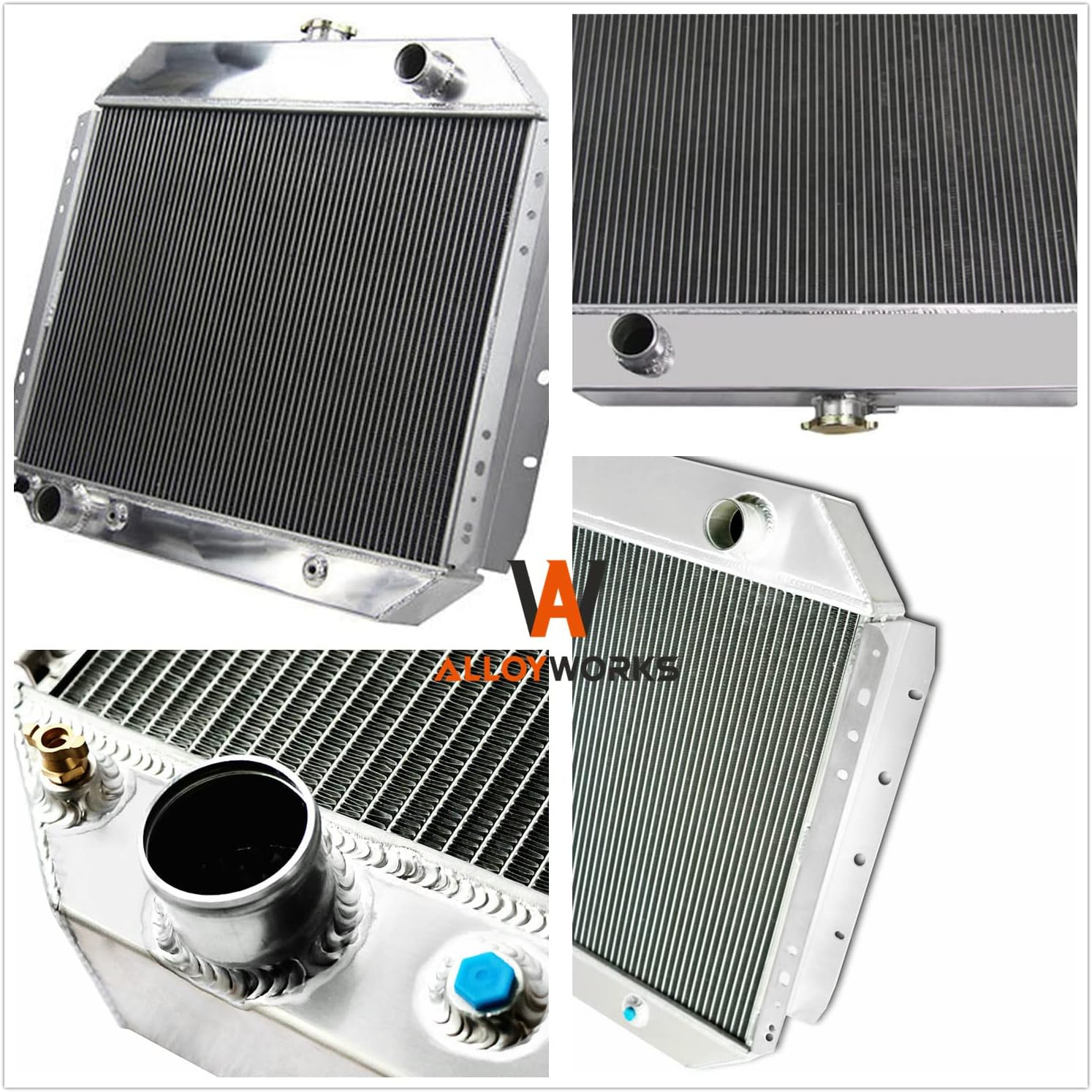

Crafts: 100% Tig welded
Delivery: Local Delivery
Fitment Type: Direct Replacement
Placement on Vehicle: Engine Compartment
Surface Finish: Aircraft Grade Raw Aluminum
Petock Drain: OEM style brass petcock drain
Radiator Cap: CNC machined filler neck and cap
Transmission Cooler: Automatic and Manual
Gentle Hint:
Parameters Meticulous Prior to Ordering.
Pls compare the overall width with your original radiator.
Warranty: 1 year warranty against manufacture defect and damage in transit.
Professional installation is highly recommended! No Fitting Instructions Supplied!
Please contact us for installation video or other any problem.
