            [pname] => Dakota Digital RTX-73F-PU-X Retrotech Gauge Instrument System Compatible with 1973-79 Ford Pickup
            [pcustomer] => apnoakes
            [price] =>
            [quantity] => 1
            [description] =>
Check out full details and more pictures here:

>>> CLICK HERE <<<

About this item



Included Analog Gauges: Speedometer, Oil Pressure, Water Temp, Voltmeter, Tachometer and Fuel Level.

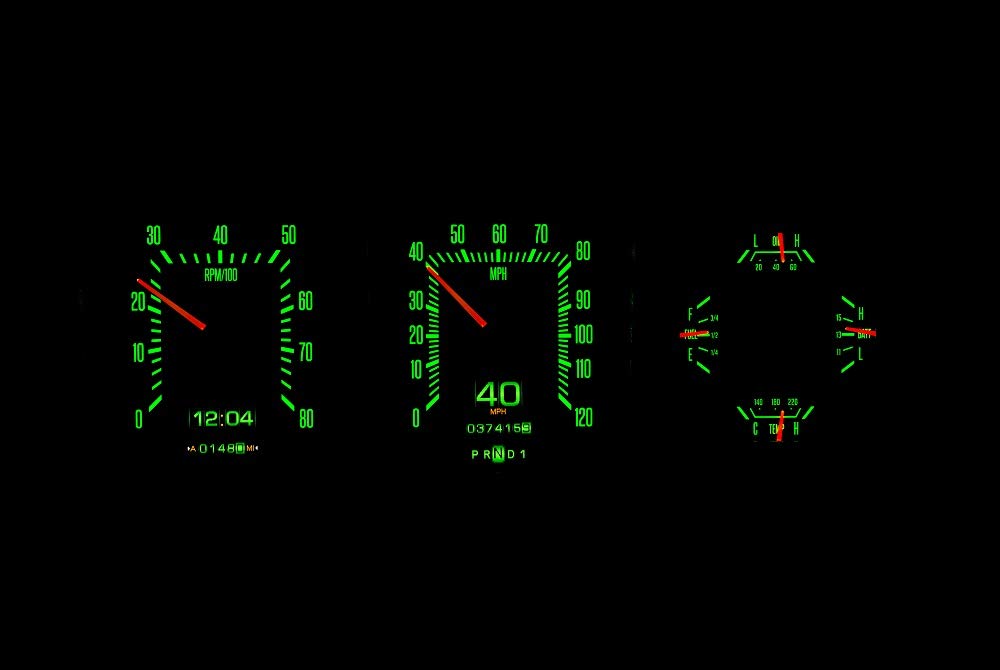

The RTX series is the latest from Dakota Digital, focused on retaining that stock look without sacrificing the late-model features you love. Every effort has been put forth to incorporate OEM design elements regarding the layout, face styling and indicators. A casual glance may dismiss these as original equipment, but once you hit the switch and the LED backlighting comes on in your favorite color scheme, all doubts will be removed.

Shown in Digital Message Center: Odometer, Trip Meter, Clock, Estimated Range/Miles to Empty, 0-60 MPH Timer, High Speed Recall, High RPM Recall. Various Indicators can be displayed: Turn Signals, High Beam, Check Engine, Parking Brake, Cruise Control and 4x4 (when vehicle is equipped), Gear Position (with GSS-3000, sold separately). Over 30 user-selectable color options allow you to independently change the needle color, sweep color and digital TFT display color.

Necessary sensors included for oil pressure (1/8” NPT), Water Temp (1/8" with bushings for 1/4", 3/8", 1/2” NPT as well 12mm and 16mm for GM & LS applications) and speedometer pulse generator.

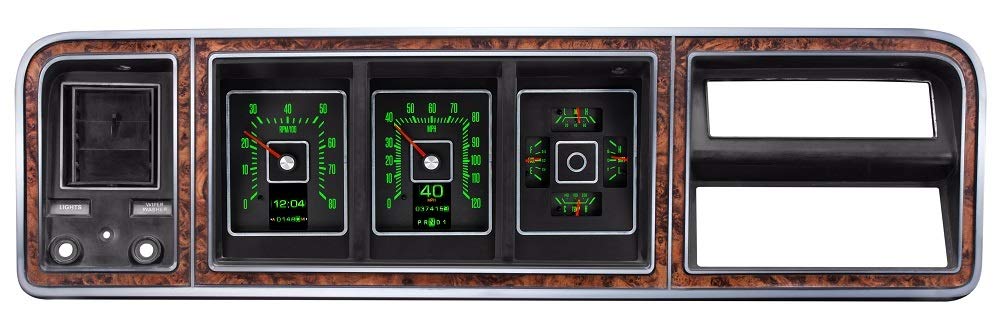

Gauge system is compatible with 1973-79 Ford Pickup and 78-79 Bronco. *Bezel not included, shown for visual/presentation purposes. System uses OEM bezel(Bezel shown for representation purposes only).


Product Description

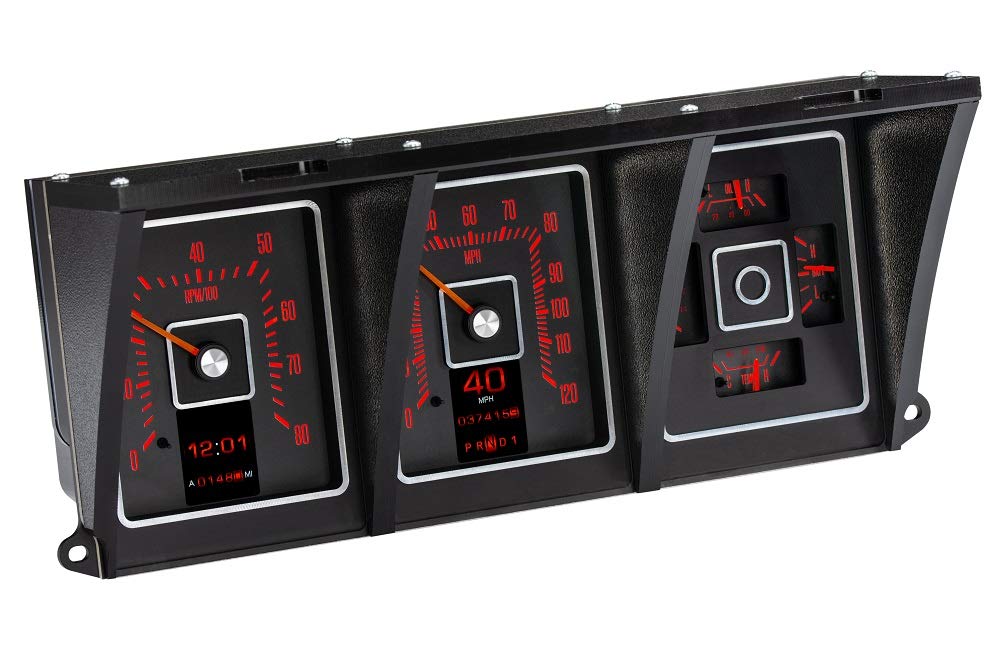

A drop in replacement, this kit has the look of the stock instrumentation but the capabilities of a late model. Color-changeable LED backlighting, twin TFT message centers plus expandability to mesh with late model and diesel drivetrain conversions make this the obvious choice for your prized Dentside. Kit requires stock instrument bezel for installation.

*Bezel not included, shown for visual/presentation purposes.

System uses OEM bezel(Bezel shown for representation purposes only).

The RTX series is the latest from Dakota Digital, focused on retaining that stock look without sacrificing the late-model features you love. Every effort has been put forth to incorporate OEM design elements regarding the layout, face styling and indicators. A casual glance may dismiss these as original equipment, but once you hit the switch and the LED backlighting comes on in your favorite color scheme, all doubts will be removed.

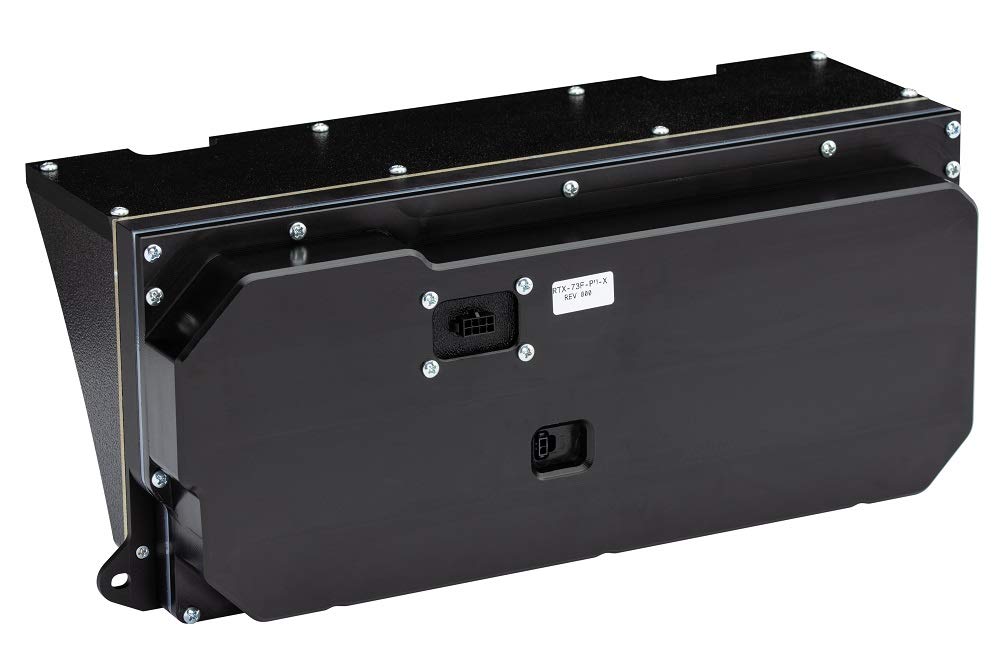

Starting from scratch, CNC machined housings are filled with electronics designed and built in-house. The high-definition TFT message centers can be fully configured to display just about any piece of information needed. The RTX series utilizes a central control box to make installation and setup as easy as possible.

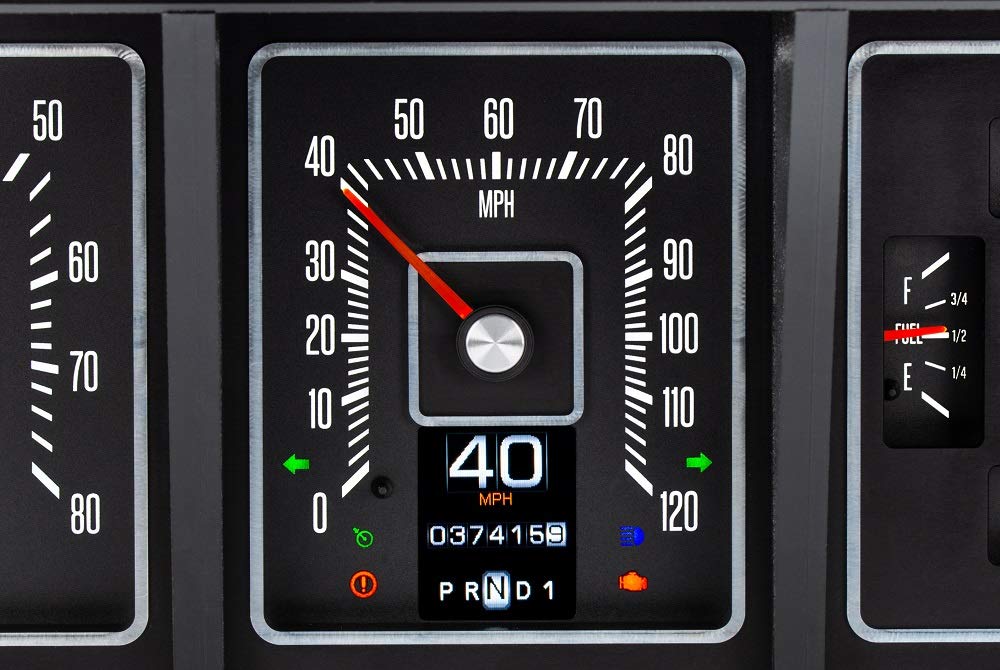

Analog Gauges: Speedometer (0-120MPH) Oil Pressure (0-80psi), Tachometer (0-8000rpm), Voltmeter, Water Temp and Fuel Level.

Digital Message Centers: Odometer, Dual Trip Meter, Clock (12 hour), Estimated Range/Miles to Empty, 0-60mph timer, 1/4 and 1/8 mile time and end speed, high speed & RPM recall

Indicators: Turn Signals, High Beam, Check Engine, Parking Brake, Cruise Control (On/On & Engaged when vehicle is equipped), Gear Position (requires GSS-3000, sold separately), 4 x 4 and Wait to Start (when vehicle is equipped)

Colors: Over 30 user-selectable color options.
