            [pname] => 3 Row Aluminum Radiator for 1970-1981 Pontiac Firebird/Trans Am 3.8-6.6 L6 V8 Radiators with Electric Fan Shroud Thermostat Kit 1971 1972 1973 1974 1975 1976 1977 1978 1979 1980
            [pcustomer] => apnoakes
            [price] =>
            [quantity] => 1
            [description] =>
Check out full details and more pictures here:

>>> CLICK HERE <<<



Direct fit for 1970-81 Pontiac Firebird Trans Am/ Esprit/ Formula V8

Core size: 27.55"H x 16.85''W x 1.73"T; Overall size: 33.07"L x 19.09"W x 5.51"T; Inlet/ outlet: 1.57"/ 1.57"（Measurement standard: the direction of the core strip is high）

Trans Oil Cooler: G1/4(Z); CNC Machined Filler Neck and Cap, OEM Style Brass Petcock Drain

Direct OE replacement with drop-in precise fitment and easy installation

Precision-engineered by in-house team of automotive experts, heavy-duty design withstands harsh conditions to deliver enduring quality


› See more product details

Product Description

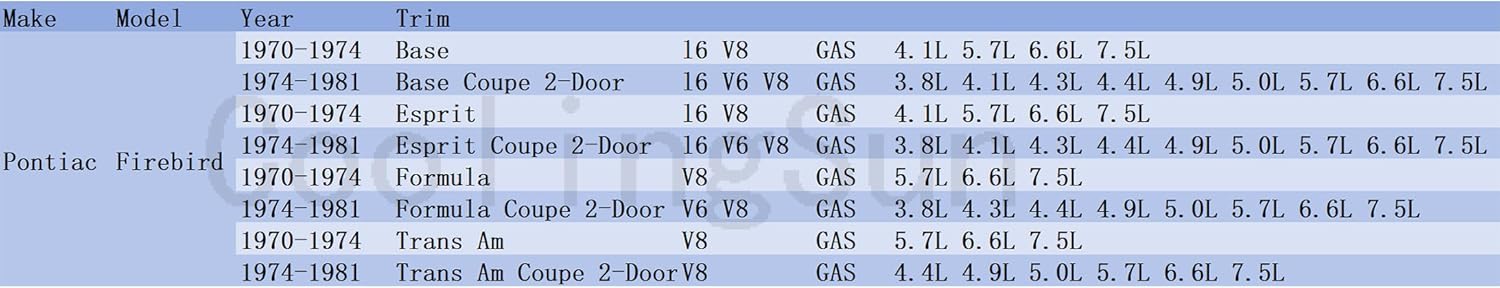

Compatible with:

1970-1973 Pontiac Firebird Trans Am 4.1L 5.7L 6.6L 7.5L

1974-1975 Pontiac Firebird Trans Am V8 5.7L

1974-1976 Pontiac Firebird Trans Am V8 7.5L

1979-1981 Pontiac Firebird Trans Am V8 4.9L

1980-1981 Pontiac Firebird Trans Am V8 5.0L

1976-1979 Pontiac Firebird Trans Am V8 6.6L

1977-1981 Pontiac Firebird Base / Esprit V6 3.8L

1980-1981 Pontiac Firebird Base / Esprit V8 4.3L

1977-1981 Pontiac Firebird Base / Esprit / Formula V8 4.9L

1977-1980 Pontiac Firebird Base / Esprit / Formula V8 5.0L

1974-1979 Pontiac Firebird Base / Esprit / Formula V8 5.7L

1976-1977 Pontiac Firebird Base / Esprit V8 6.6L

1974 Pontiac Firebird Base / Esprit / Formula V8 7.5L

1976-1979 Pontiac Firebird Formula V8 6.6L

1981 Pontiac Firebird Formula 3.8L 4.3L 5.0L



This radiator is designed for either a 3.8L(231ci) V6, 4.3L(265ci) V8, 4.9L(301ci) V8, 5.0L(305ci) V8, 5.7L(350ci) V8, 6.6L(400ci) V8 or a 6.6L(403ci) V8 engine.

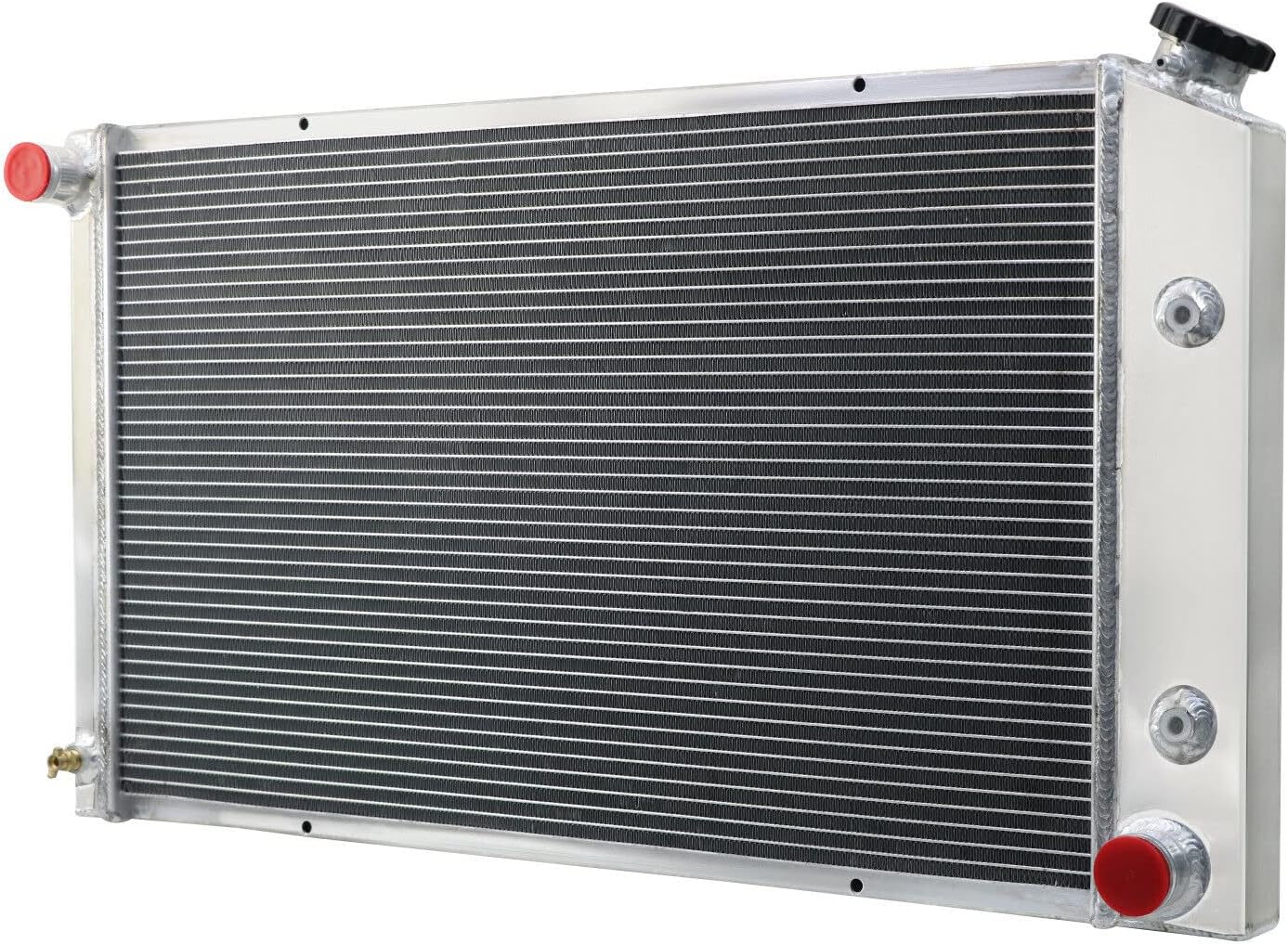

Radiator Details:

Type: 3 Core

Core Thickness: 1.73"

Material: All Aluminum



FAN SPEC:

Maximum Fan CFM: 2300±200

Fan Diameter X Height X Thickness:12.05" X 12.05" X 2.5"

Number of Blades: 10 blades (Plastic)

Amp Draw: 12.70 amps

Maximum Fan RPM: 2,250 rpm



Thermostat Kit:

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at preset temperature.

180'F turn-on temperature, 165'F turn-off temperature.

3/8" NPT thread-in brass probe included.

Probe typically threads into radiator, water outlet or manifold.



Thermostat Relay Kit Instructions：

RED + connect directly to battery.

WHITE wire to ignition switch power source.

BLACK goes to thermos switch.

BLUE wire goes to the Fans.

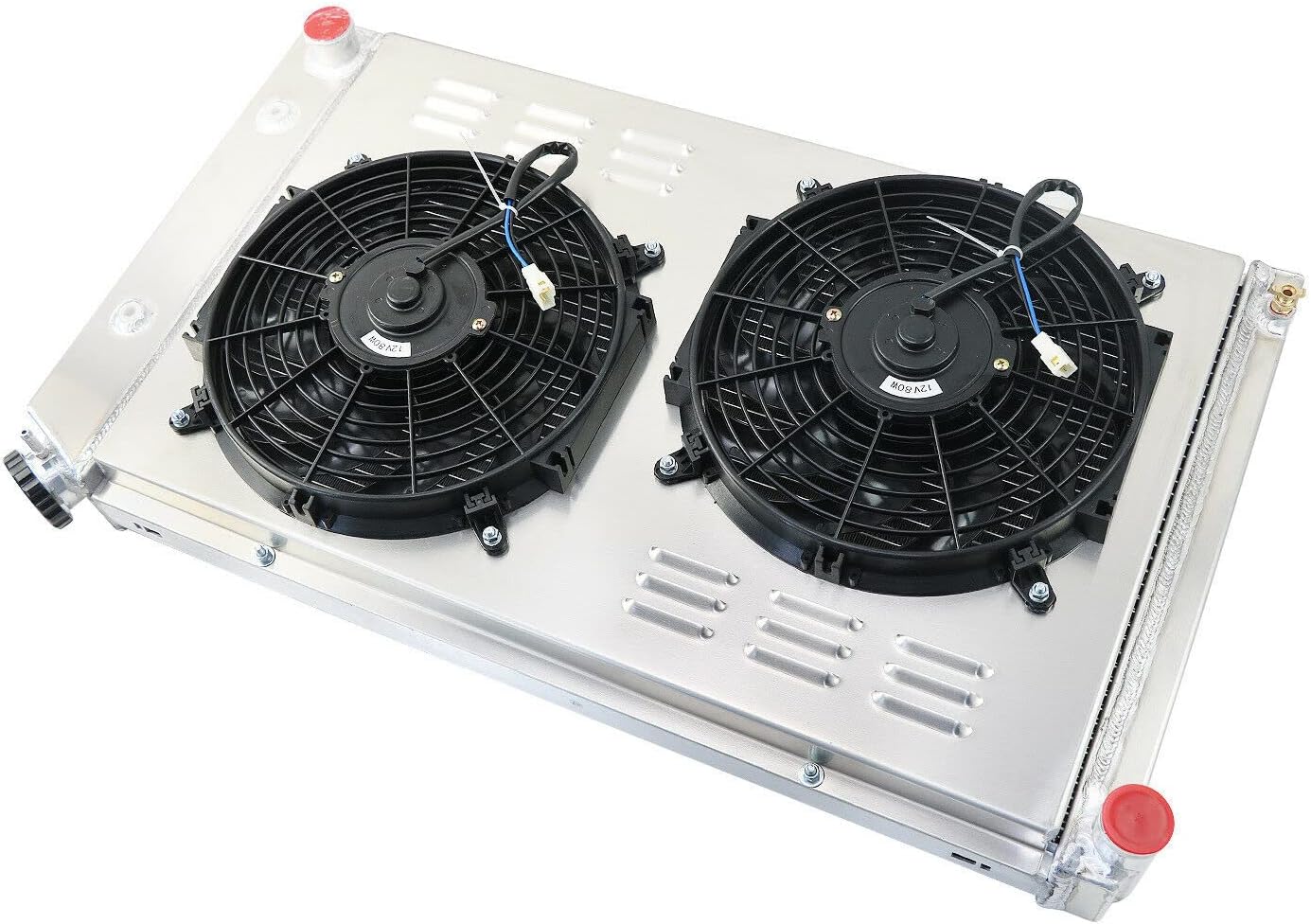

Package Include:

1 X 3-Row Radiator

1 X Shroud

2 X 12"Fan (Includes mounting kits)

1 X Thermostat Relay Kit
