            [pname] => Dakota Digital RTX-55C-X Compatible with 1955-56 Chevy Car Retrotech Gauge Instrument System
            [pcustomer] => apnoakes
            [price] =>
            [quantity] => 1
            [description] =>
Check it out here:

>>> CLICK HERE <<<

About this item



Included Analog Gauges: Speedometer, Tachometer, Oil Pressure, Water Temp, Voltmeter, and Fuel Level.

The RTX series is the latest from Dakota Digital, focused on retaining that stock look without sacrificing the late-model features you love. Every effort has been put forth to incorporate OEM design elements regarding the layout, face styling and indicators. A casual glance may dismiss these as original equipment, but once you hit the switch and the LED backlighting comes on in your favorite color scheme, all doubts will be removed.

Shown in Digital Message Center: Odometer, Trip Meter, Clock, Estimated Range/Miles to Empty, 0-60 MPH Timer, High Speed Recall, High RPM Recall. Various Indicators can be displayed: Turn Signals, High Beam, Check Engine, Parking Brake, Cruise Control and 4x4 (when vehicle is equipped), Gear Position (with GSS-3000, sold separately). Over 30 user-selectable color options allow you to independently change the needle color, sweep color and digital TFT display color.

Necessary sensors included for oil pressure (1/8” NPT), Water Temp (1/8" with bushings for 1/4", 3/8", 1/2” NPT as well 12mm and 16mm for GM & LS applications) and speedometer pulse generator.

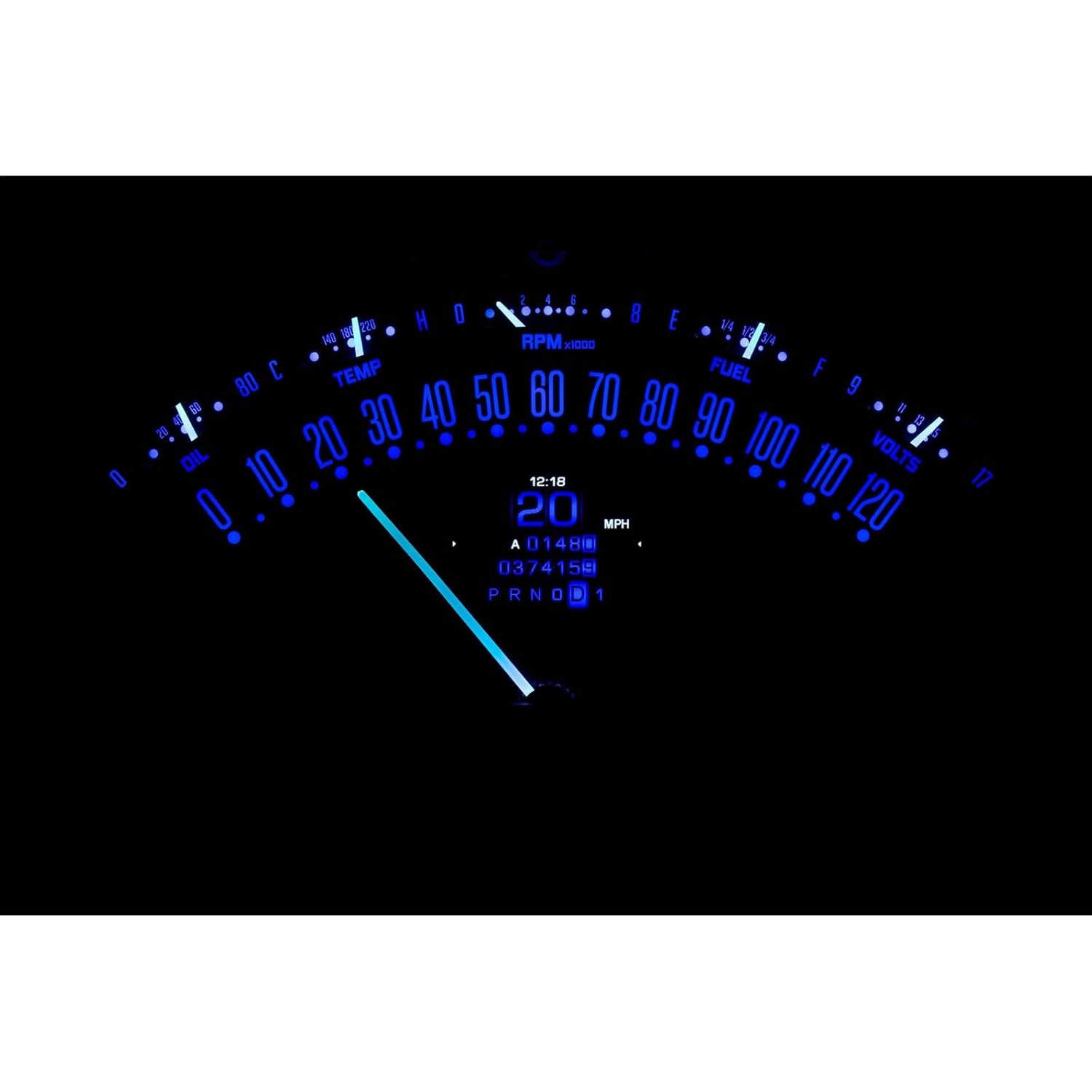

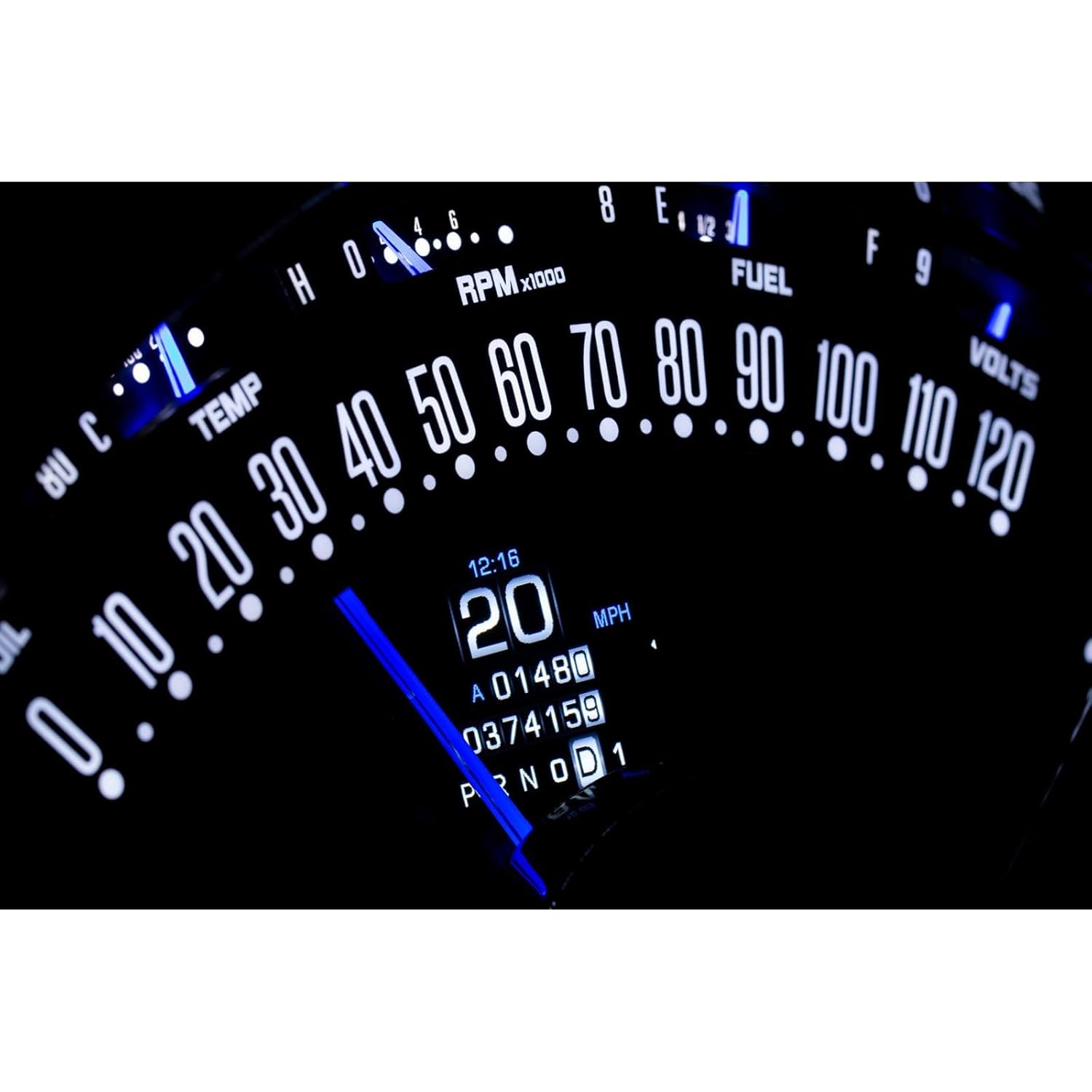

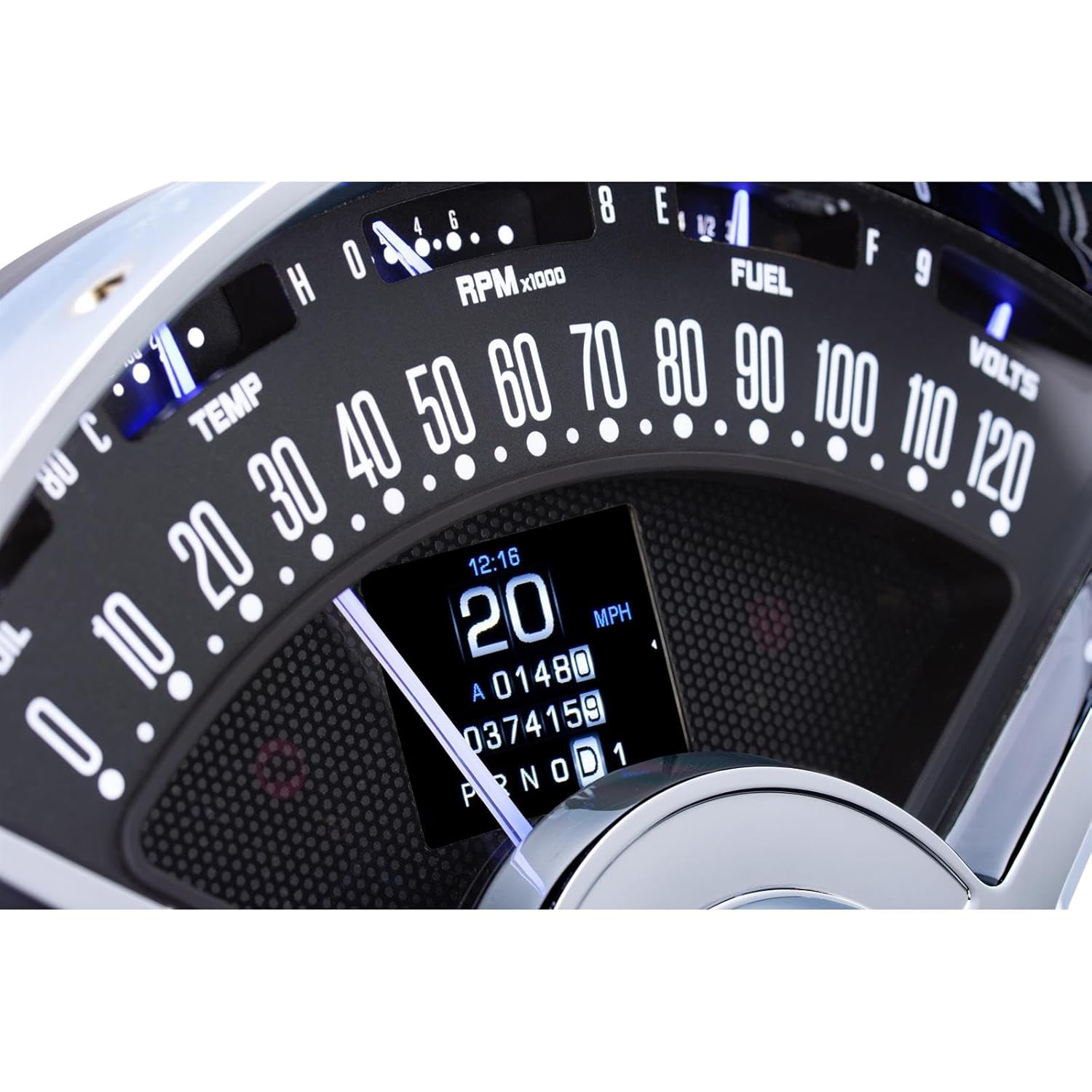

Gauge System is compatible with 1955-56 Chevy Car. This 21st century wonder has the look of a stock 1955-56 Chevy cluster but offers a full-color TFT message center and LED backlighting (user-adjustable colors). The casual observer will think this is vintage stuff, right down to the mesh pattern behind the speedometer needle – until you hit the key! Use a stock or reproduction bezel (not included).


Product Description

Compatible with 1955-56 Chevy Car. This 21st century wonder has the look of a stock 1955-56 Chevy cluster but offers a full-color TFT message center and LED backlighting (user-adjustable colors). The casual observer will think this is vintage stuff, right down to the mesh pattern behind the speedometer needle – until you hit the key!

System requires stock or reproduction bezel for installation (bezel is NOT included, shown for visual purposes only).

* Instrument system eliminates the stock automatic gear shift indicator immediately above steering column. To display gear position, add GSS-3000 Gear Shift Sensor (sold separately).

The RTX series is the latest from Dakota Digital, focused on retaining that stock look without sacrificing the late-model features you love. Every effort has been put forth to incorporate OEM design elements regarding the layout, face styling and indicators. A casual glance may dismiss these as original equipment, but once you hit the switch and the LED backlighting comes on in your favorite color scheme, all doubts will be removed.

Starting from scratch, CNC machined housings are filled with electronics designed and built in-house. The high-definition TFT message centers can be fully configured to display just about any piece of information needed. The RTX series utilizes a central control box to make installation and setup as easy as possible.

Analog Gauges: Speedometer (0-120MPH), Tachometer (0-8000rpm), Oil Pressure (0-80psi), Water Temp, Fuel Level, and Voltmeter

Digital Message Centers: Odometer, Dual Trip Meter, Clock (12 hour), Estimated Range/Miles to Empty, 0-60mph timer, 1/4 and 1/8 mile time and end speed, high speed & RPM recall

Indicators: Turn Signals, High Beam, Check Engine, Parking Brake, Cruise Control (On / On & Engaged when vehicle is equipped), Gear Position (requires GSS-3000, sold separately), 4 x 4 and Wait to Start (when vehicle is equipped)

Color: Over 30 user-selectable color options.
