Check it out here:

>>> CLICK HERE <<<

Dakota Digital

1970 - 72 Chevy Chevelle, Monte Carlo and El Camino SS VHX Instruments

Fits: 1970 1971 1972 Chevrolet Chevelle, Monte Carlo, and El Camino



VHX-70C-CVL-C-R with CARBON FIBER style and RED backlighting

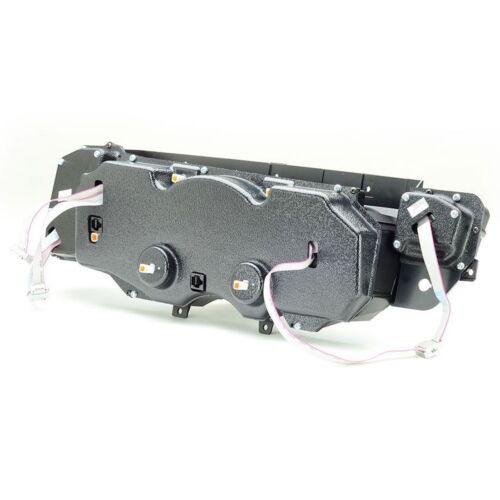

The new VHX Systems fit directly into the stock instrument bezel of a 1970- 72 Chevy Chevelle, Monte Carlo and El Camino SS without modification, adding a wealth of features to this iconic vehicle.

Arguably the king of the muscle cars, 1970 saw over the top engines along with a totally new dash design. Keep the style while upgrading to the 21st century technology with VHX-70C-CVL. Bolting directly into stock or aftermarket bezels and gauge carriers (not included), six analog instruments with stock-location indicators and three LCD message centers offer stylish, up-to-date information.

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems. Completely engineered and manufactured at their facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!

*Bezel not included, shown for visual/presentation purposes.

System uses OEM or reproduction style bezel

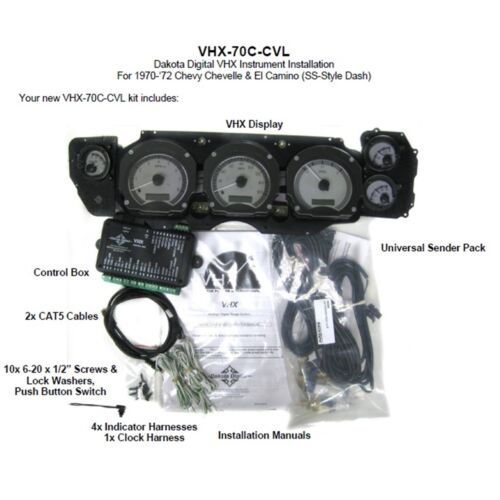

VHX System Includes:

Analog Gauges

Speedometer - 0-160 MPH (optional metric version 0-255 kmh)

Tachometer - 0-8000 RPM

Oil Pressure - 0-80 psi

Water Temperature - 100-260ºF (optional metric version 40-120ºC)

Fuel Level - E, 1/4, 1/2, 3/4, F

Voltmeter - 9-17 VDC

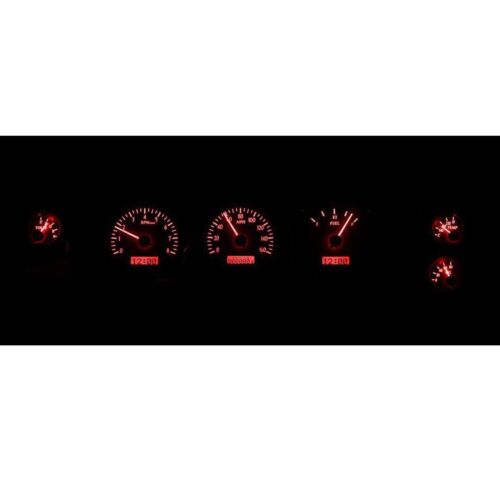

Lighting - Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.

Digital Message Center

Standard Displays:

Odometer (One time user settable, Million Mile)

Dual (A/B) Trip Meter (0-9,999.9)

Clock (12 hour)

Performance Meters:

0-60 MPH Timer (0-100 kmh)

1/4 mile time

1/4 mile end speed (trap speed)

High speed recall

High RPM recall

Gauges:

Speedometer (0-255 MPH / KM/H)

Tachometer (0-9,990 RPM)

Oil Pressure (0-100 psi displayed in 1 psi increments)

Water Temperature (100-300ºF / 40-150ºC displayed in 1ºF/ºC increments)

Voltmeter (9-17 VDC)

Fuel Level (0-99% full)

Lighting:



Auto-contrasting LCD display for optimal view in the brightest of sunlight.

LED backlit at night to match/complete the look at night.

Built-In Indicators

Turn Signals (Left/ Right)

High Beam

Check Engine

Parking Brake

Cruise Control (On/ On & Engaged when vehicle is equipped)

Gear Position (Optional GSS-2000 sensor required, sold separately)

4 x 4 (When vehicle is equipped)

Wait to Start (When vehicle is equipped)

Included Sensors:

Water Temperature - 1/8" NPT, ground isolated sensor with a 10 ft harness.

Oil Pressure - 1/8" NPT solid state sensor with a 10 ft harness.

Cable Drive Speed Sensor/Generator - Replaces GM style speedometer cables with a 10 ft harness (Tremec and Ford style adapters available upon request).

Bushings - Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Calibration

Pushbutton - Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.

More info about this system and pics are available below. This listing is for ONE VHX gauge system with your choice of style and backlighting color. Please let us know your options when you make your purchase.

Metric system (KM/H and degrees Celsius) is available as a custom option (no additional cost) but may take 4-8 weeks to build.
